Drilling SPM Machine: Working, Types, Applications & Benefits
In modern manufacturing, productivity depends on speed, accuracy, repeatability, and process consistency. Conventional drilling machines are suitable for many general machining operations, but industries with repetitive and high-volume drilling requirements often need a more specialized solution.
A Drilling Special Purpose Machine (Drilling SPM Machine) is designed specifically for such applications.
Drilling SPM machines automate repetitive drilling operations and can be customized according to the component, hole pattern, production volume, material, cycle-time requirement, and level of automation required.
JBDS Power designs and manufactures customized Drilling SPM Machines and industrial automation solutions for automotive, engineering, fabrication, component manufacturing, and other industrial applications.
What is a Drilling SPM Machine?
A Drilling SPM Machine is a Special Purpose Machine engineered to perform specific drilling operations repeatedly with controlled accuracy and production speed.
Unlike a conventional drilling machine that may be used for different general-purpose jobs, an SPM is developed around a defined component and manufacturing process.
Depending on the application, a customized drilling SPM can incorporate:
Single or multiple drilling heads
Multi-spindle drilling units
Pneumatic or hydraulic clamping
Servo-controlled movement
Automatic component positioning
PLC-based machine control
HMI operator interface
Sensors and safety interlocks
Automatic loading and unloading
Rotary indexing tables
Tool monitoring
Conveyor or production-line integration
The objective is to perform the required drilling operation with consistent quality, reduced operator dependency and optimized cycle time.
How Does a Drilling SPM Machine Work?
The exact working sequence depends on the component and machine design. A typical automated Drilling SPM follows a controlled production cycle.

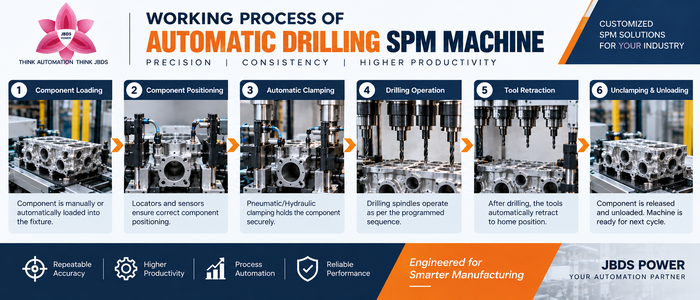

1. Component Loading
The operator or an automated loading system places the component into the machine fixture.
The fixture is designed according to the component geometry so that every workpiece maintains the required position during machining.
2. Component Positioning
Locators, stoppers, proximity sensors or other sensing systems verify that the component is correctly positioned before the drilling cycle begins.
3. Automatic Clamping
Pneumatic, hydraulic or servo-based clamping mechanisms securely hold the component.
Correct clamping helps prevent unwanted movement during drilling and supports repeatable machining.
4. Drilling Operation
The drilling head or multiple drilling spindles move into position and perform the programmed drilling operation.
Depending on the application, several holes may be drilled simultaneously using a multi-spindle drilling arrangement.
5. Depth & Position Control
Mechanical stops, sensors, servo systems or other control methods can be incorporated to maintain the required drilling depth and positioning.
6. Tool Retraction
After the drilling operation is completed, the drilling heads automatically retract to their home position.
7. Unclamping & Component Removal
The fixture releases the finished component so that it can be manually or automatically unloaded.
The machine then becomes ready for the next production cycle.
Main Components of a Drilling SPM Machine
A Drilling SPM combines mechanical engineering, machining technology and industrial automation into a single production system.
Machine Structure
A rigid machine structure provides the mechanical stability required during drilling operations.
Drilling Head
The drilling head carries the spindle and cutting tool responsible for machining the component.
Spindle System
Depending on the production requirement, the machine may use a single spindle or multiple spindles.
Fixture & Clamping System
Customized fixtures locate and secure the component during machining.
Pneumatic or Hydraulic System
Pneumatic and hydraulic systems can be used for clamping, positioning and other machine movements.
Servo System
Servo motors and drives may be incorporated where controlled positioning and programmable movement are required.
PLC Control System
The PLC controls the machine sequence and communicates with sensors, drives, valves and other automation components.
HMI
The Human Machine Interface allows operators to monitor machine status, parameters, alarms and production information.
Sensors & Safety Interlocks
Sensors verify component positioning, machine movement and operating conditions. Safety interlocks help prevent the machine from operating when predefined safety conditions are not satisfied.
Types of Drilling SPM Machines
Different manufacturing processes require different machine configurations. JBDS Power can develop the Drilling SPM according to the customer's component and production requirement.
1. Single-Spindle Drilling SPM
A Single-Spindle Drilling SPM uses one drilling spindle for a defined drilling operation.
It can be suitable when:
The component requires a limited number of holes
Production requirements are moderate
The drilling sequence is straightforward
A dedicated and repeatable drilling process is required
2. Multi-Spindle Drilling SPM
A Multi-Spindle Drilling SPM Machine can drill multiple holes during the same machining cycle.
Instead of drilling individual holes one after another, several drilling tools can operate together according to the required hole pattern.
This approach can significantly improve productivity in suitable high-volume applications.
Common applications may include:
Automotive components
Flanges
Housings
Brackets
Engine components
Fabricated components
Industrial assemblies
3. Automatic Drilling SPM Machine
An Automatic Drilling SPM combines the drilling process with automated clamping, positioning and machine sequencing.
The system may incorporate:
PLC control
HMI
Automatic clamping
Sensors
Servo systems
Pneumatic or hydraulic mechanisms
Automatic loading/unloading
Production counters
Alarm monitoring
Automatic Drilling SPM machines are particularly useful where the same drilling process is performed continuously on large quantities of components.
4. CNC / Servo-Based Drilling SPM
For applications requiring programmable positioning, a Drilling SPM can incorporate CNC or servo-based motion control.
The machine can be engineered around the required drilling coordinates, component geometry and machining sequence.
This type of system can be useful for components requiring multiple drilling positions or more complex automated movement.
5. Rotary Indexing Drilling SPM
A Rotary Indexing Drilling SPM uses an indexing table to move components between different stations.
For example:
Loading → Positioning → Drilling → Secondary Operation → Inspection → Unloading
Multiple operations can therefore be organized within one automated production cell.
6. Customized Drilling SPM Machine
Industrial components differ significantly in dimensions, materials, hole patterns, tolerances and required production volumes.
A Customized Drilling SPM is therefore designed around the actual manufacturing process rather than forcing the component into a standard machine configuration.
JBDS Power can develop the machine considering factors such as:
Component drawing
Component dimensions
Material
Hole diameter
Number of holes
Hole position
Required drilling depth
Required production quantity
Target cycle time
Loading method
Clamping requirement
Automation requirement
Existing production-line layout
Drilling SPM Machine vs Conventional Drilling Machine
The primary difference is the purpose and production approach.
A conventional drilling machine provides flexibility for general drilling work and typically relies more heavily on operator involvement.
A Drilling SPM is developed around a specific repetitive production process.
For high-volume repetitive operations, a properly engineered Drilling SPM can provide:
Faster production cycles
Reduced repetitive manual operations
Better process consistency
Improved repeatability
Multiple drilling operations in one cycle
Automated component clamping
Controlled process sequencing
Integration with other manufacturing equipment
The appropriate machine ultimately depends on the component, production volume, tolerances, investment requirements and desired automation level.
Benefits of Using a Drilling SPM Machine
Higher Production Efficiency
A dedicated machine eliminates many repetitive manual steps and can optimize the drilling sequence around the specific component.
Reduced Cycle Time
Multi-spindle arrangements and automated positioning can perform multiple operations within a shorter production cycle.
Consistent Manufacturing Process
Fixtures, automated clamping and controlled drilling sequences help maintain consistency from component to component.
Reduced Operator Dependency
Once the machine is correctly set up, many repetitive operations can be automated.
Multiple Operations in One Machine
Depending on the machine design, drilling can be combined with processes such as tapping, countersinking, reaming, inspection or component handling.
Improved Production Planning
A predictable machine cycle helps manufacturers plan output more effectively.
Production-Line Integration
Drilling SPM machines can be integrated with conveyors, robots, loading systems, inspection stations and other automation equipment.
Applications of Drilling SPM Machines
Drilling SPM machines can be designed for numerous repetitive industrial drilling applications.
Typical applications include:
Automotive component drilling
Engine component machining
Flange drilling
Housing drilling
Bracket drilling
Pipe and tube drilling
Fabricated component drilling
Industrial assembly components
Electrical enclosure manufacturing
Metal component production
Heavy engineering components
Production-line machining
Industries That Can Use Drilling SPM Machines
Drilling SPM solutions can be developed for industries including:
Automobile & Auto Components
General Engineering
Heavy Engineering
Industrial Equipment Manufacturing
Electrical & Electronics Manufacturing
Metal Fabrication
OEM Component Manufacturing
Assembly-Line Manufacturing
Machinery Manufacturing
Industrial Automation
Drilling SPM with PLC & HMI Automation
Modern SPM machines can incorporate PLC and HMI systems to provide automated control and operator visibility.
Depending on project requirements, the control system can manage:
Automatic cycle operation
Machine sequence
Clamping confirmation
Sensor status
Servo movement
Cycle counter
Production quantity
Machine alarms
Emergency conditions
Process parameters
Maintenance indications
This provides operators and production teams with better control over the machine's operating sequence.
Integration with Existing Production Lines
A Drilling SPM does not necessarily need to operate as an isolated machine.
JBDS Power can engineer SPM solutions for integration with other industrial automation systems, including:
Conveyor systems
Robotic loading and unloading
Pick-and-place systems
Assembly lines
Inspection stations
Material handling equipment
Pneumatic automation
Hydraulic automation
PLC-based production systems
This makes it possible to develop a more integrated manufacturing cell rather than automating only the drilling operation.
How to Select the Right Drilling SPM Machine
Before developing a Drilling SPM, several technical factors should be evaluated.
Component Details
The component drawing, dimensions, material and weight should be studied first.
Drilling Requirement
Important parameters include:
Number of holes
Hole diameter
Hole depth
Hole position
Required tolerance
Production Requirement
The expected production quantity per shift or per day helps determine the required machine configuration.
Target Cycle Time
The target production cycle influences spindle configuration, automation and loading arrangement.
Loading Method
The machine can be designed for:
Manual loading
Semi-automatic loading
Conveyor loading
Robotic loading
Required Automation Level
Depending on production requirements, the machine may use pneumatic, hydraulic, servo, PLC, HMI and robotic automation.
Providing these details during the initial engineering stage helps develop a machine better suited to the actual manufacturing process.
Why Choose JBDS Power for Drilling SPM Machines?
JBDS Power provides customized engineering and industrial automation solutions for manufacturing applications.
Our Drilling SPM solutions can cover the complete project lifecycle from initial application study to machine commissioning.
Our Capabilities Include
Customized SPM Machine Design
Mechanical Design & Engineering
Fixture Design
PLC Programming
HMI Development
Pneumatic & Hydraulic Automation
Servo Automation
Electrical Control Panels
Conveyor Integration
Robotic Automation Integration
Machine Manufacturing & Assembly
Testing & Commissioning
Installation Support
After-Sales Technical Support
Rather than providing only a standard machine, the objective is to engineer the SPM according to the customer's component, process, productivity requirement and automation objective.
Frequently Asked Questions About Drilling SPM Machines
What is a Drilling SPM Machine?
A Drilling SPM is a Special Purpose Machine designed to perform specific repetitive drilling operations with a customized combination of machining, fixtures, clamping and automation.
What is the difference between an SPM and a conventional drilling machine?
A conventional drilling machine is designed for general-purpose operations, while an SPM is engineered around a specific component or production process.
Can an SPM drill multiple holes simultaneously?
Yes. A multi-spindle Drilling SPM can be designed to drill multiple holes during the same machine cycle where the component geometry and process permit it.
Can JBDS Power manufacture a customized Drilling SPM?
Yes. JBDS Power provides customized SPM and industrial automation solutions developed according to the customer's component and production requirements.
Can PLC and HMI be integrated into a Drilling SPM?
Yes. PLC and HMI systems can be incorporated for automatic machine sequencing, parameter control, status monitoring, alarms and operator interaction.
Can a Drilling SPM be integrated with a conveyor?
Yes. Depending on the application, the machine can be integrated with conveyors and other material-handling or automation systems.
Which information is required to develop a Drilling SPM?
Typical information includes the component drawing, material, dimensions, hole specifications, tolerances, production quantity, target cycle time and required automation level.
Is a Drilling SPM suitable for high-volume production?
Dedicated Drilling SPMs are particularly useful for repetitive production where reduced cycle time, consistent operation and process automation are important.
Looking for a Customized Drilling SPM Machine?
If your production line requires faster drilling, multiple drilling operations, reduced manual handling or a completely customized drilling process, JBDS Power can develop an SPM solution according to your manufacturing requirements.
Share your component drawing, drilling details, required production quantity and target cycle time with our engineering team to discuss the appropriate machine concept.
JBDS POWER GROUP
Phone: +91 7290054361
Email: digital@jbdspower.com
Email: info@jbdspower.com
Location: Plot No. 302, Sector 7, IMT Manesar, Gurgaon, Haryana – 122052
Website: jbdspower.com
Contact JBDS Power today for customized Drilling SPM Machine design, manufacturing, automation integration and industrial project support.
